Specification

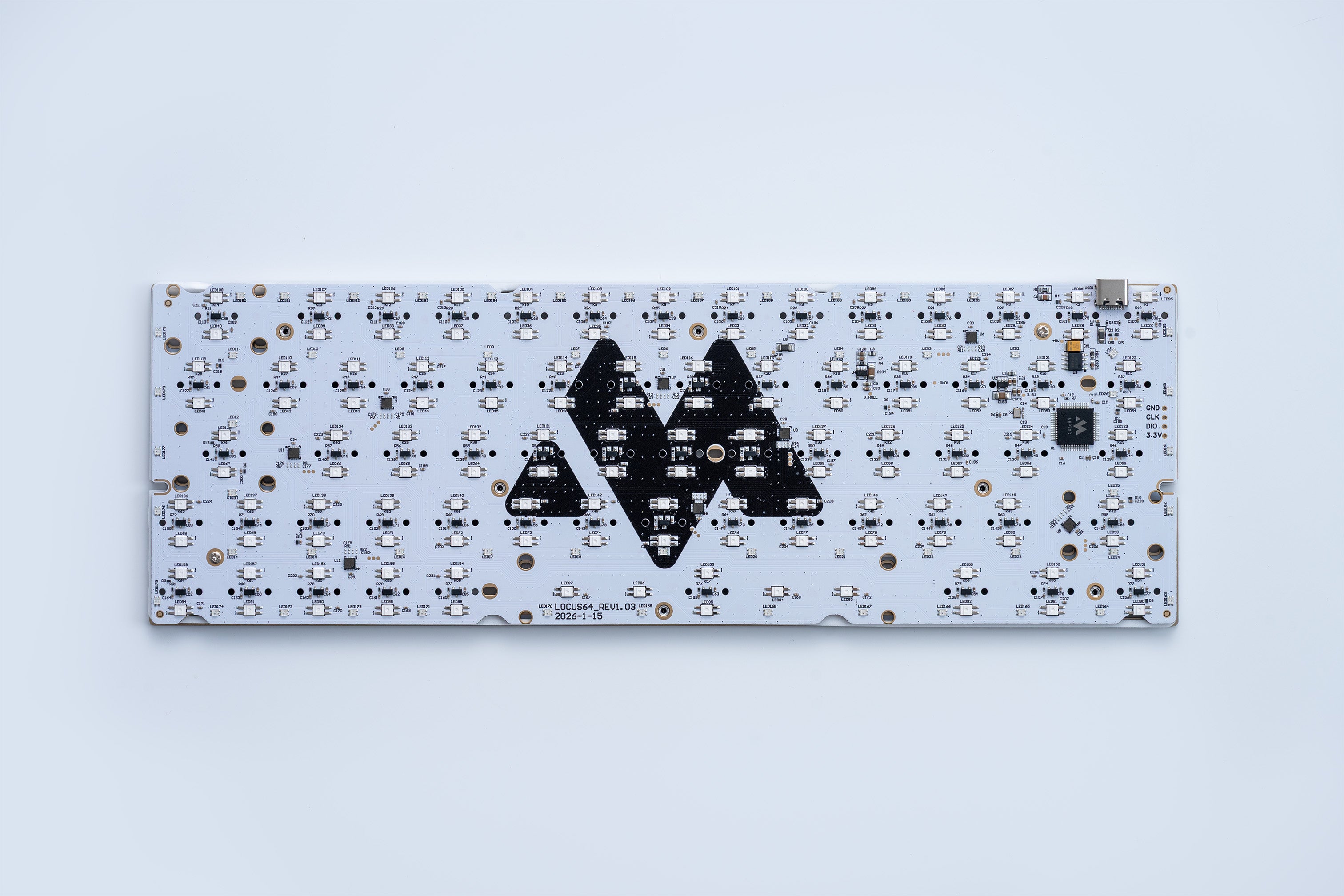

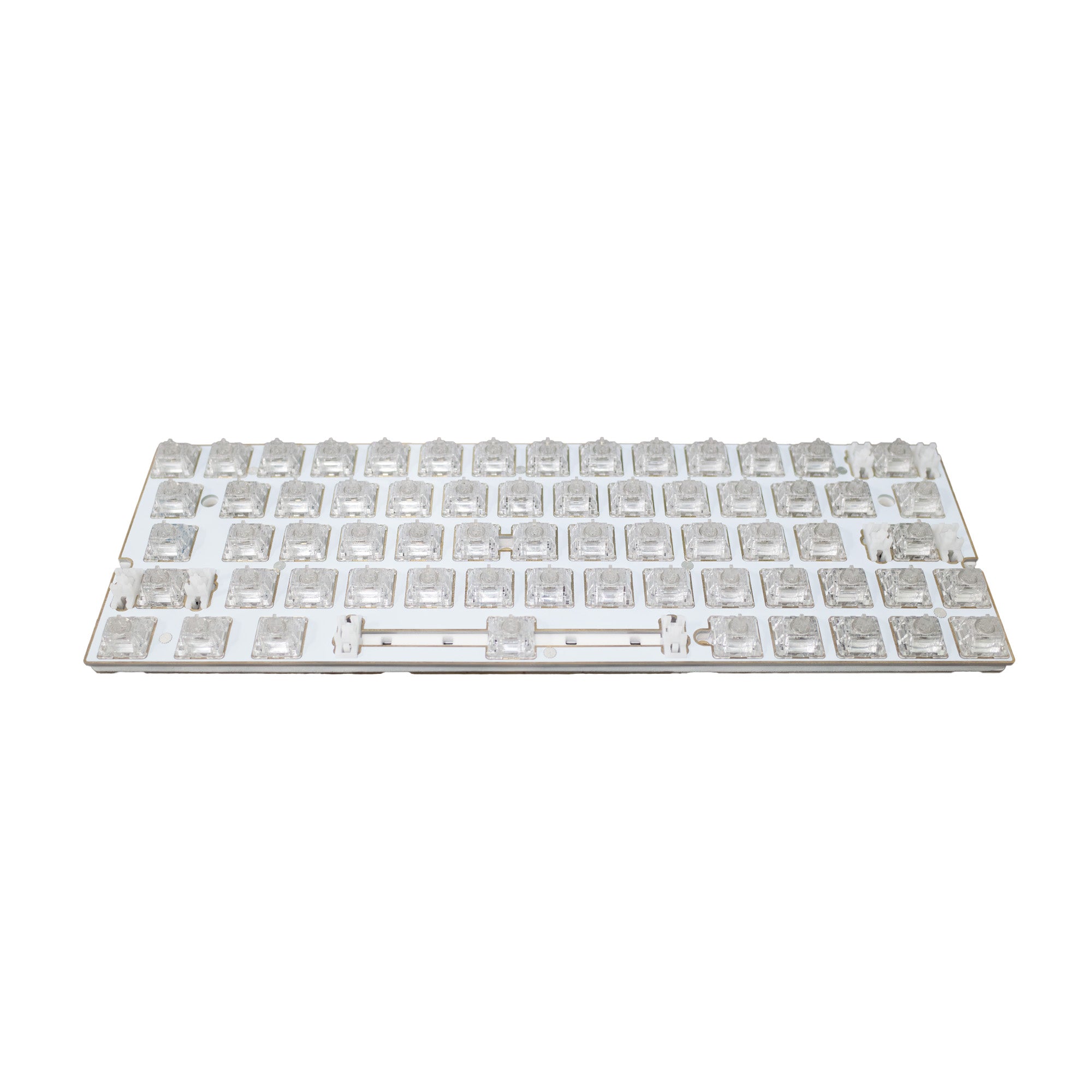

- Layout: 60% PCB-64 Keys
- Switches: UR Extreme Ice Magnetic Switch
- Plate:Gold-Plated FR4 Positioning Plate
- Switch Travel: Adjustable (0.1mm-3.4mm)
- Total Travel: 3.5±0.3mm
- USB Polling Rate: 8k
- Scan Rate: 64k
- Latency: 0.125ms
- Accuracy: 0.05mm
- Hot-swappable: Hot-swappable

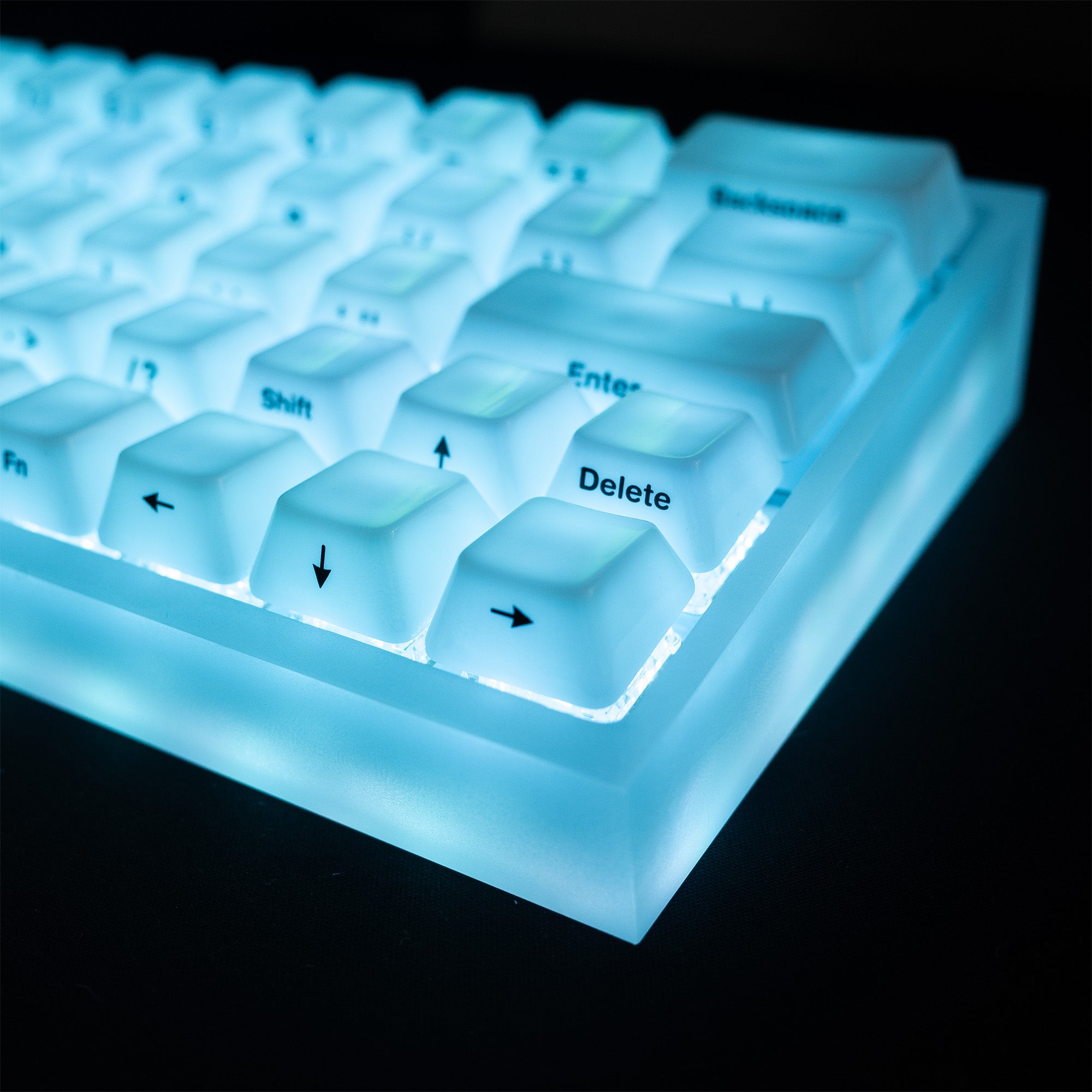

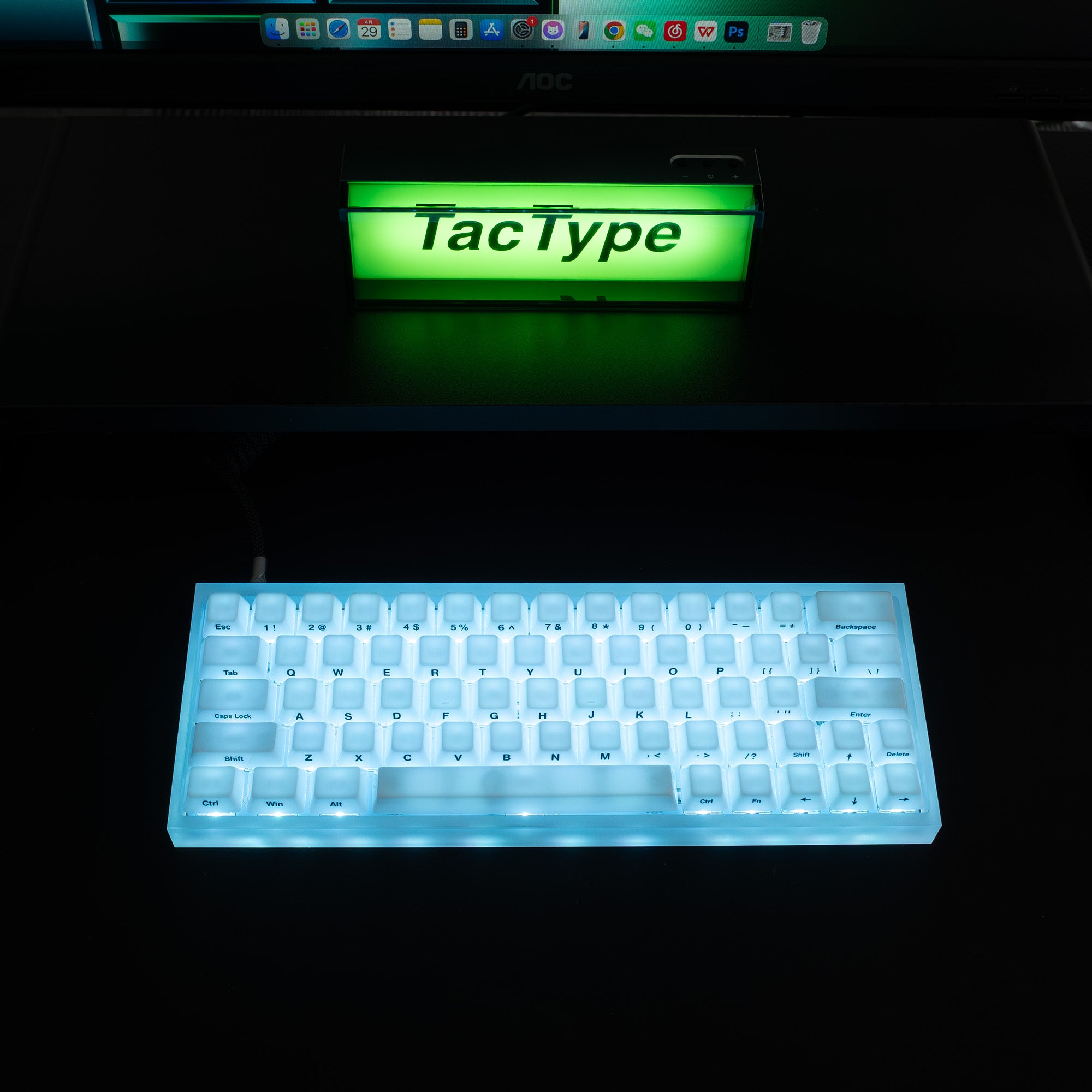

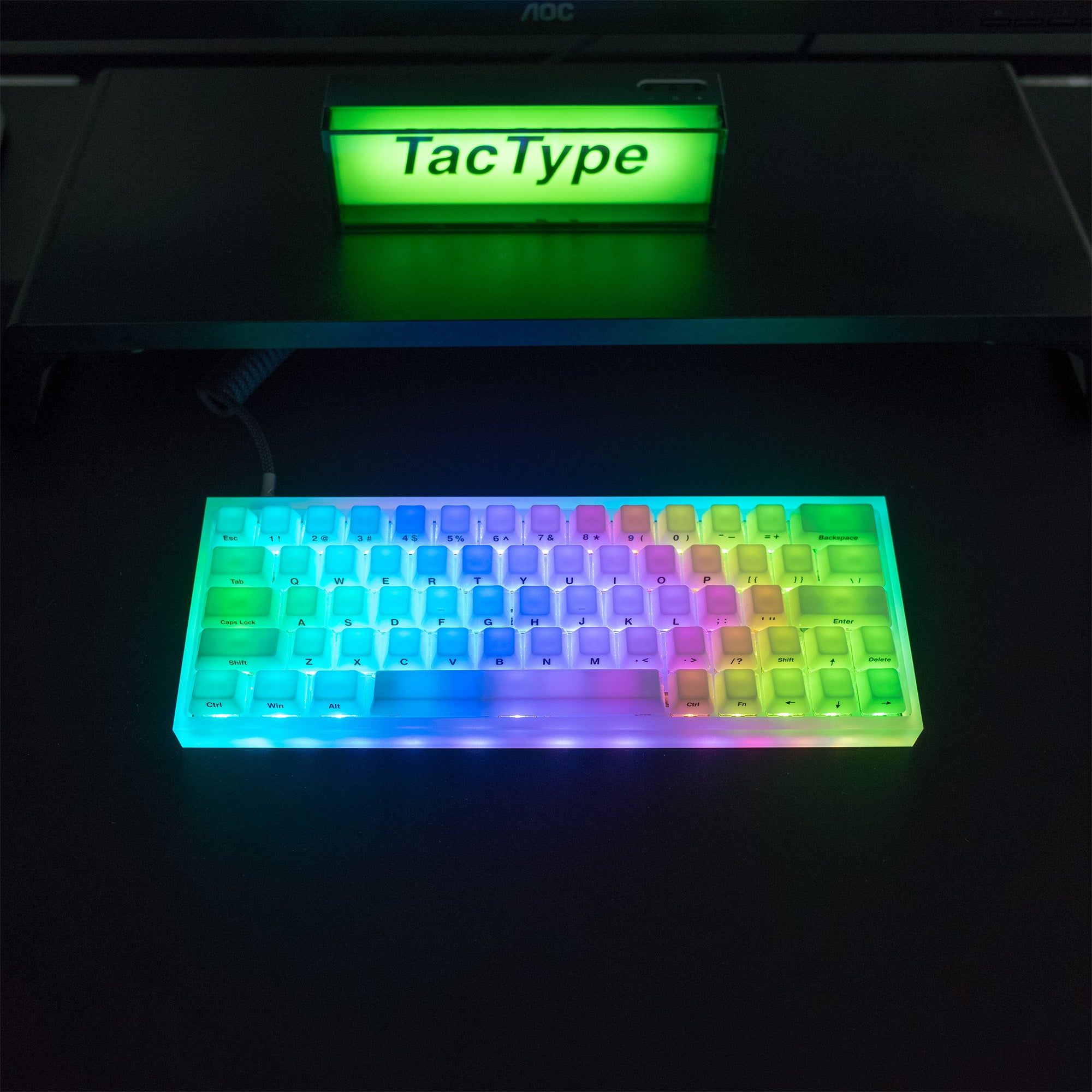

- SupportLighting: Dual LED glow / RGB backlight (Total 191 LEDs)

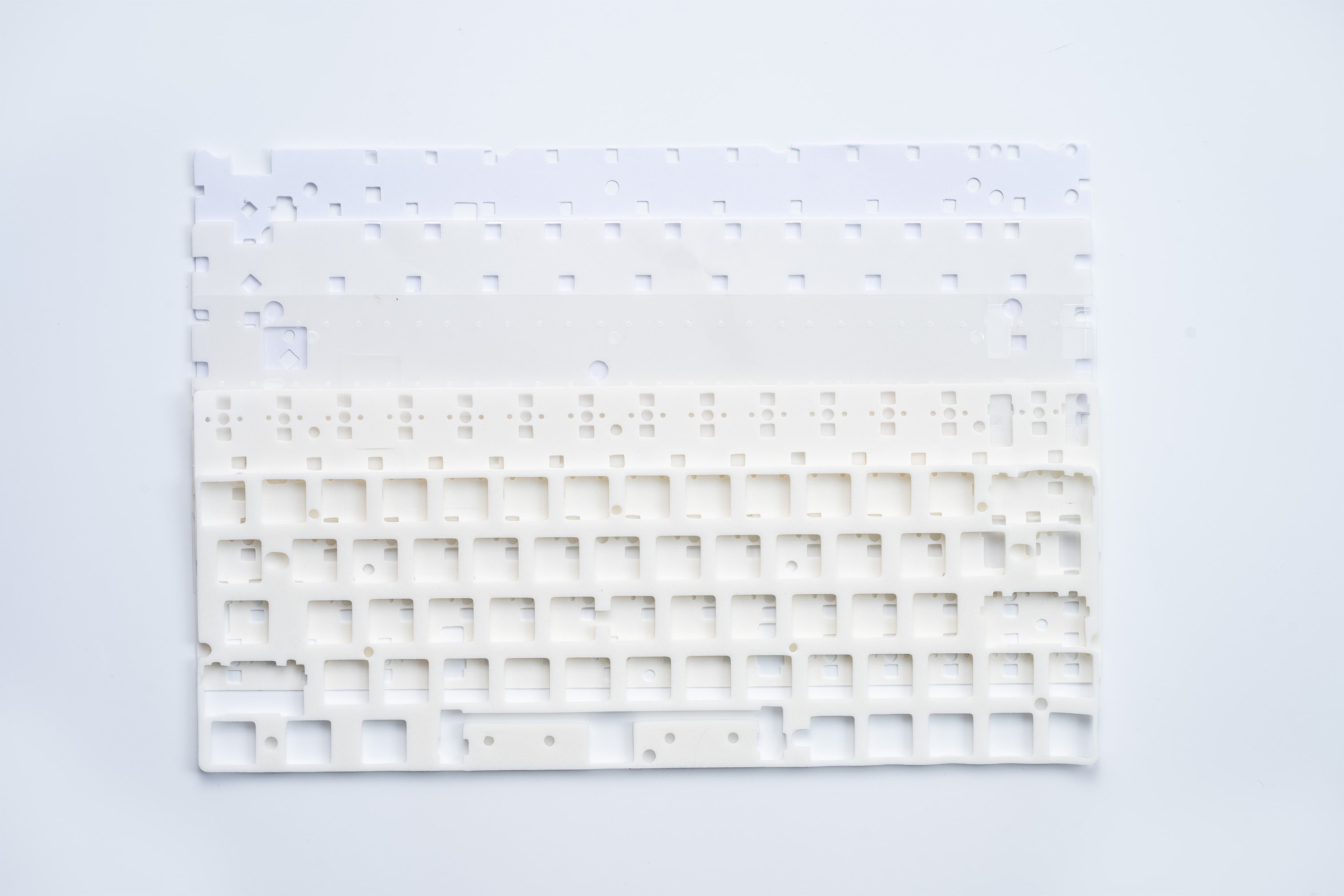

- Internal Padding: 5-Layer Sound-Dampening Foam Padding

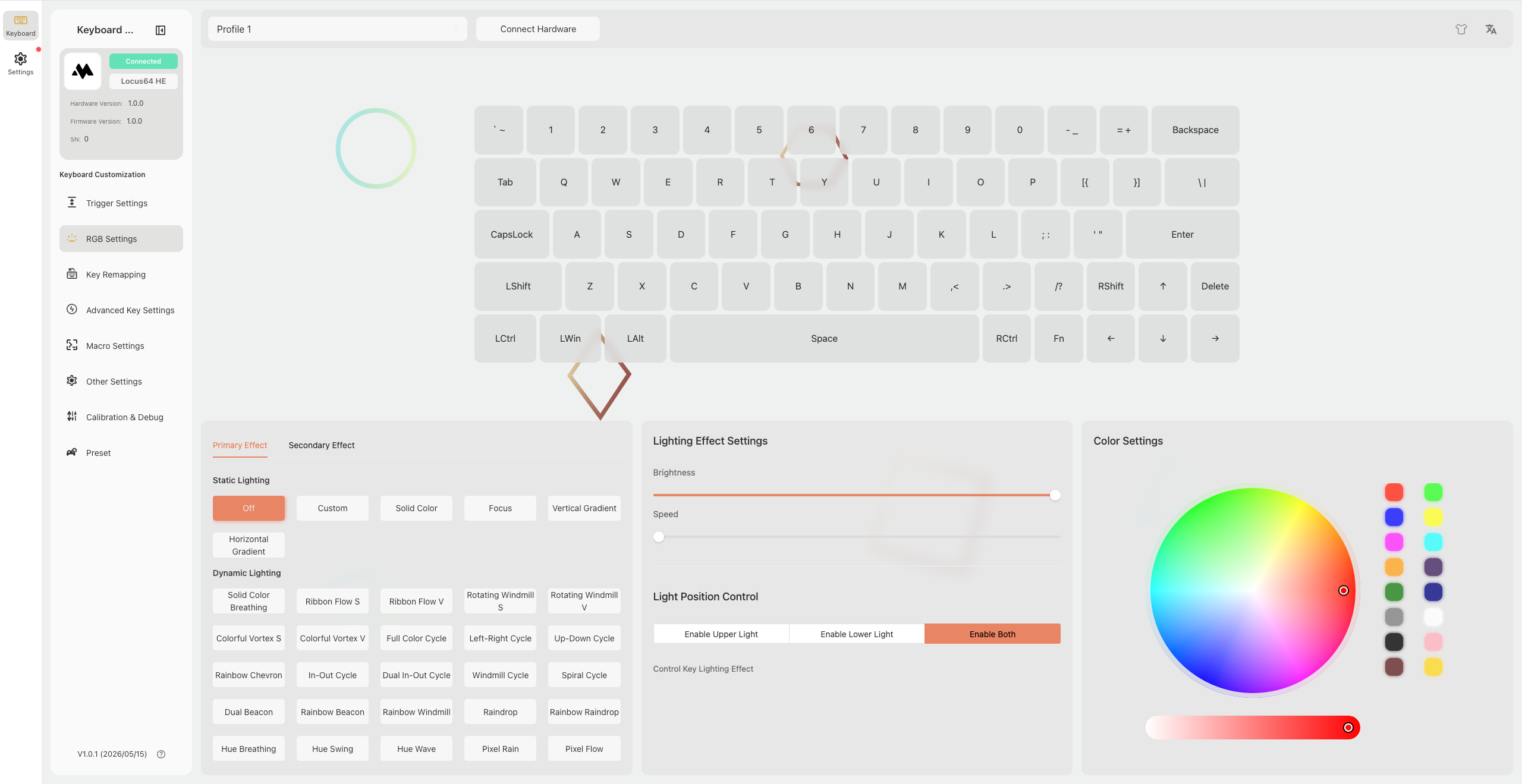

- Driver:https://hub.meetkb.com/

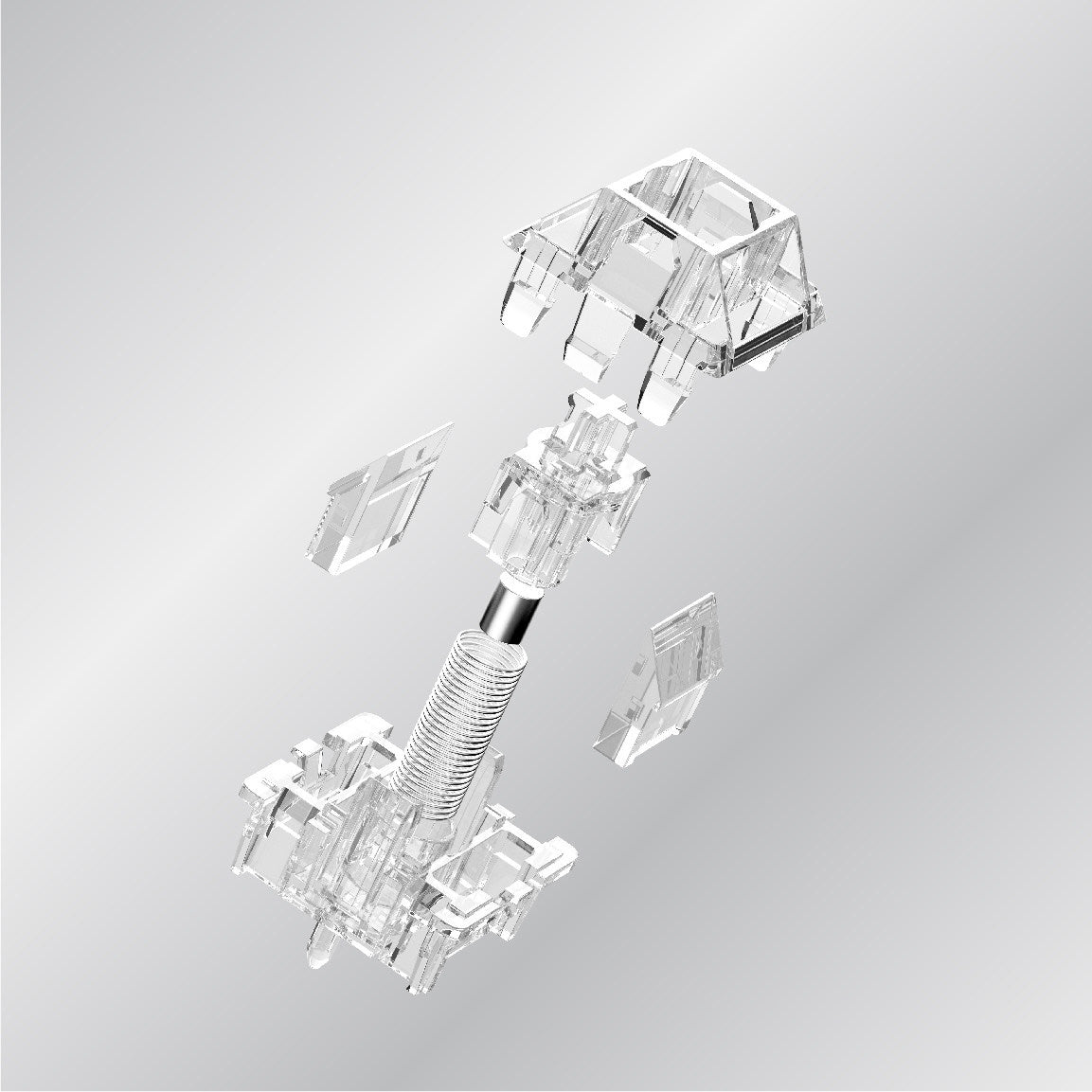

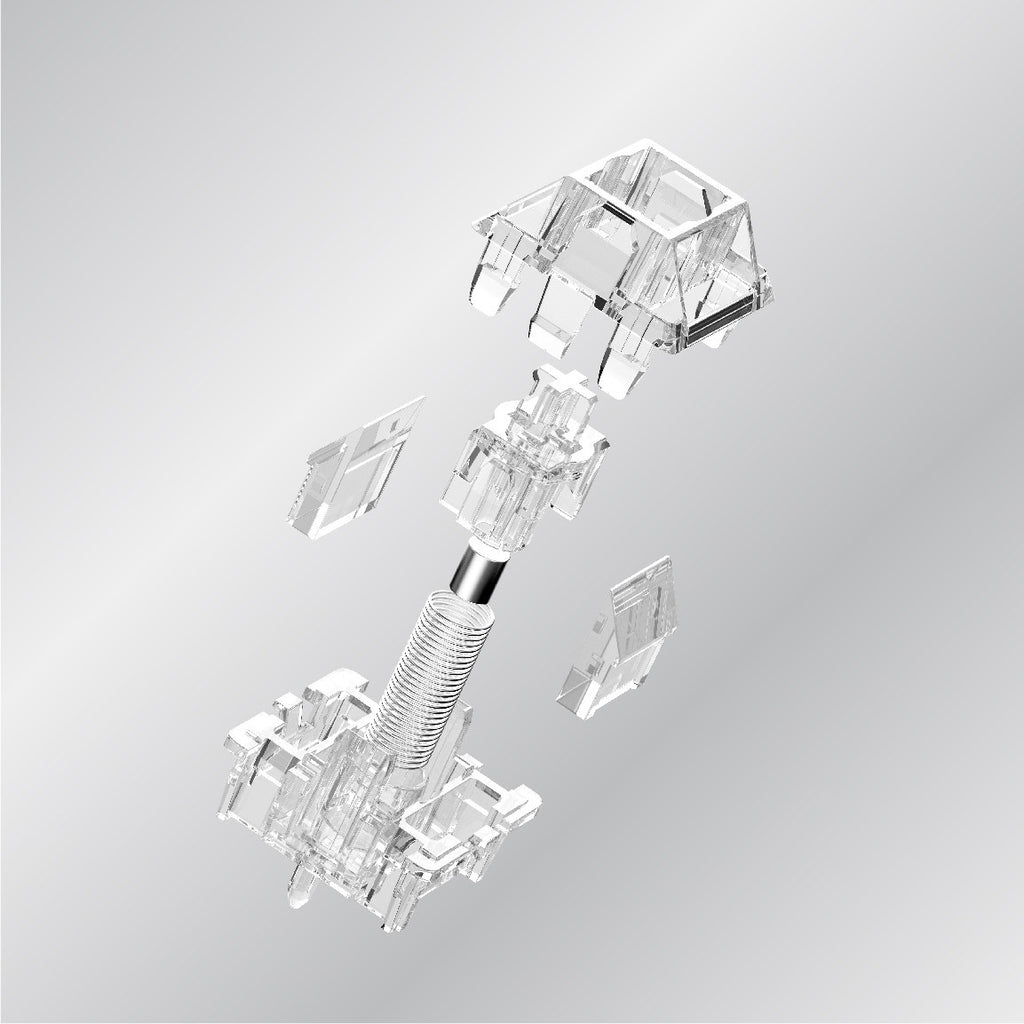

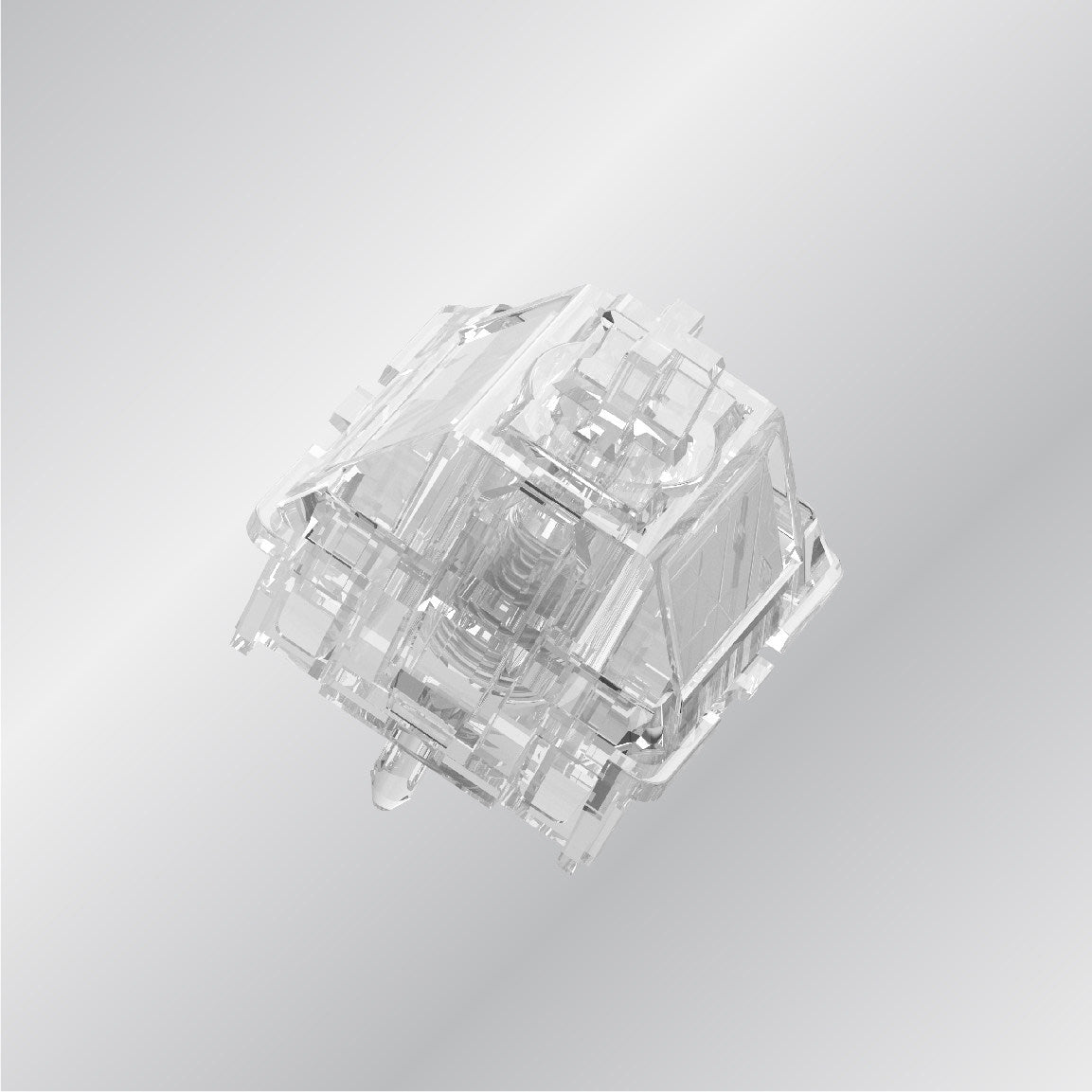

UR Extreme Ice Magnetic Switch
- Type: Linear
- Total travel: 3.5±0.3mm
- Initial pressure: 35±5gf
- Bottom-out force: 50±5gf
- Initial magnetic flux: 110±20 Gs
- Bottom-out magnetic flux: 700±40 Gs
- Spring length: 22mm dual-stage elongated spring
- Lifespan: 100,000,000 cycles (continuous non-load trigger)
